- Built-in 12dBi 2x2 dual polarized and directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimization for wireless network transmission with a range of over 13 km
- Ideal for PTMP applications TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance, throughput and latency performance for throughput
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operating modes
- Passive PoE Adapter that supports Power over Ethernet application up to 60 meters (200 feet) and allows remote reset of the device

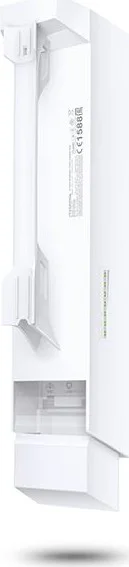

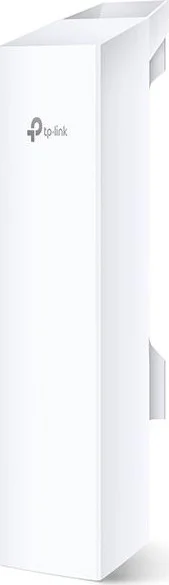

 TP-LINK's 2.4GHz 300Mbps 12dBi Outdoor CPE, CPE220 is dedicated to providing cost-effective solutions for outdoor wireless networking applications. Thanks to its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. & nbsp; Professional performance and user-friendly design make the CPE220 an ideal choice for business and home users alike. Enterprise Hardware With Qualcomm Atheros enterprise-grade chipsets, high-gain antennas and high-quality materials, specially designed housing and PoE power supply, the CPE220 is specially designed for the outdoors and can operate in almost any climate: -40℃ (-40℉) to + 70 ℃ (158℉). Advanced Antenna System Internal High Gain Bipolar Antenna Dedicated metal reflector provides higher gain and lower noise interference 13km+ Wireless Data Transmission Specially designed for outdoor use, ideal for field-tested long-range wireless data transmission over 13 km. TP-LINK MAXtream TDMA Technology As the network scale increases, there will be wireless competition and collisions between CPEs and base stations so great that the actual output of the network will drop, which will have a serious impact on the end user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology. Pharos Control – Central Management System The CPE220 comes equipped with central management software - Pharos Control, which helps users easily manage all devices in their network from a single PC. Functions such as device discovery, status monitoring, firmware upgrade and network maintenance can be managed using Pharos Control. PharOS User-friendly web-based management system allows professionals to make more specific configurations. About TP-Link | TP-Link is the world's number 1 wireless network manufacturer with millions of customers in more than 120 countries. With its strong R&D, efficient and tight management, ADSL, Routers, IP Cameras, Powerline Adapters, Pirint Servers for all users worldwide. continues to produce award-winning products together with Media Converters and Network servers.
With the trust of millions of users, TP-Link continues to offer network products to the world market, which aims to rank in the top 3 in the world by producing network products among competitive network brands and will facilitate the lives of our valued customers in the world market. | | |
HARDWARE FEATURES |
---|
Processor | Qualcomm Atheros 560MHz CPU, MIPS 24Kc |
---|
Memory | 64MB DDR2 RAM, 8MB Flash |
---|
Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Reset Button |
---|
Power source | Passive Power over Ethernet via LAN0 (+4.5pins; -7.8pins) Voltage range: 16-27VDC |
---|
Power consumption | 10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will
|
---|
Dimensions ( W X D X H ) | 11×3.1×2.1 inches (276×79×60 mm) |
---|
Antenna Type | Built-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane)
|
---|
Protection | 15KV ESD Protection 6KV Lightning Protection |
---|
Casing | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
---|
WIRELESS FEATURES |
---|
Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
---|
Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
---|
Wireless Speed | Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic)
Up to 36.1Mbps (5MHz,Dynamic) |
---|
Frequency | 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations
|
---|
Transmit Power | 30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending
|
---|
SOFTWARE FEATURES |
---|
Wireless Configurations | Pharos MAXtream TDMA Technology 802.11b/g/n Modes
Automatic Channel Selection
Dynamic Frequency Selection (DFS)
Security: WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP) Encryption, 64/128/152-bit WEP Encryption
Multiple SSID with VLAN Tagging (AP mode only)
wireless Mac address filter
> Marker Spacing / RTS Threshold / Fragmentation
|
---|
Administration | Discovery and remote management with the Pharos Control app HTTP / HTTPS Web-based management
SNMP Agent (v2c)
Dynamic DDNS
|
---|
System Tools | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
Spectrum Analyzer
ping
|
---|
System Level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications hardware watch dog |
---|
POE ADAPTER FEATURES |
---|
Dimensions (H X W X D) | 85.8×43.9×31.9mm |
---|
Input Current | 0.4A Max 100VAC |
---|
Input Voltage | 100VA~240VAC 50Hz~60Hz |
---|
Exit | M24VDC, 0.5A Max +4,5pin; -7, 8pin. (Power over Ethernet support up to 60m) |
---|
Productivity | >80% |
---|
Output Voltage | 24VDC(+4.5pin; -7.8pin) |
---|
Login | 100-240VAC, 50/60Hz |
---|
Power Status LEDs | Green |
---|
Certificates | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
---|
Interfaces | 1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
|
---|
Button | Remote Reset Button |
---|
OTHERS |
---|
Certificate | CE, FCC, RoHS, IPX5 |
---|
Package Included | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter
AC Power Cord
|
---|
System requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Experience: Google Chrome, Safari and Firefox.
|
---|
Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉)
Storage Humidity: 5%~95% non-condensing |
---|
1 Grounding Terminalbe higher by some amount depending on the length of the connecting cable.Note: For more details, please refer to datasheetUp to 72.2Mbps (10MHz, Dynamic)of the countries or regions in which the device is used.on the limitations of the countries or regions in which the device is used.Selectable Channel Width: 5/10/20/40MHzTransmission Power ControlEnable / Disable WDSEnable / Disable SSID BroadcastDistance / ACK Timeout SettingWireless Advanced:> Threshold / DTIM Interval / AP Isolation / Short GI / Wi-Fi MultimediaSystem LogPing Watch DogSSH ServerMonitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCPSpeedtesttraceroute1 10/100/1000Mbps Shielded Ethernet Port (Data)Pole Mounting StrapsInstallation GuideNote: For an advanced user, we recommend using one of the following Web browsersIE browsers are not recommended.Operating Humidity: 10%~90% non-condensing |
